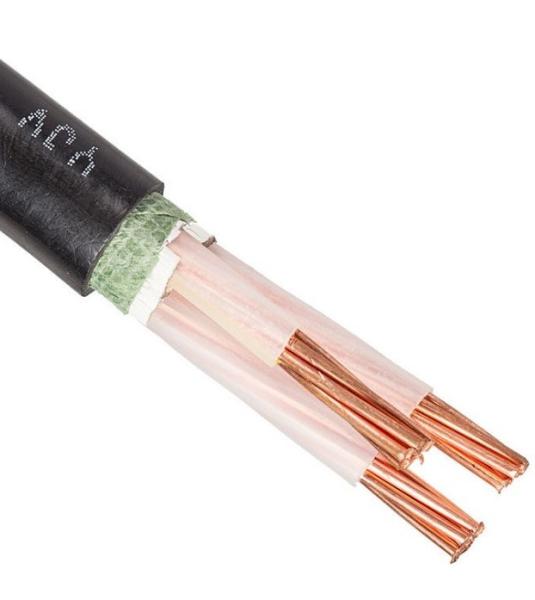

Copper Core XLPE Insulated N2XY Cable Low Voltage Underground Power Cable
Application:
N2XY cross-linked polyethylene insulated power cable is dedicated to industrial facilities and urban network distribution with a rated voltage of 0.6/1KV and a frequency of 50 Hz. Suitable for indoor fixed installation, laying in cable ducts, cable racks or protective grids, directly buried in gullies, or used outdoors under protection.
Standards and certifications:
VDE-0276-603, HD 603.1, IEC 60502, VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1, CE, low voltage 73/23/EEC and 93/68/EEC directives, ROHS certification
Cable structure:
- Solid or stranded bare copper conductor
- Follow DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2 and IEC 60228 cl.1/cl.2
- XLPE insulation DIX3 category, follow VDE 0276-603/5G
- Color coding complies with DIN VDE 0293 (HD 308)
- PVC filling
- PVC outer sheath DMV6 follows HD 603.1
Construction:
Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Outer sheath: Polyvinyl chloride PVC
Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
Why Choose Us?
Zhongtian Cable is a modern enterprise focusing on the development, production and sales of wires and cables. Our company has a group of high-quality scientific and technological elites who have been committed to the production and research and development of cable products for many years; our company implements scientific management in the industry, has advanced production technology, modern production and testing equipment.
The product production range covers dozens of categories and more than 1,000 specifications such as cross-linked cables below 35KV, power cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables, pre-branched cables, rubber-sheathed cables, and aluminum alloy cables. Cable products.
The company's many series of products have been widely used in my country's electric power, mining, petrochemical, urban construction, public transportation, real estate development and other fields.
